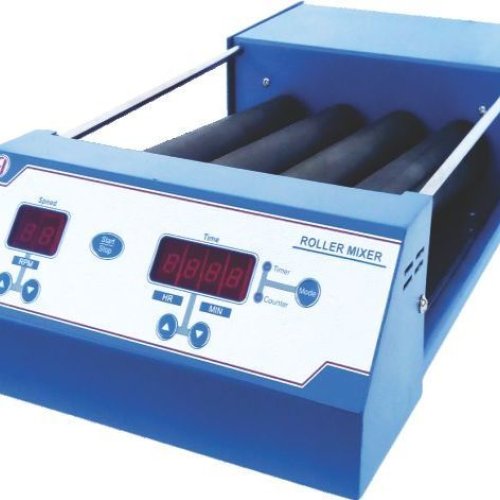

Blood Roller Mixer

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier
Country of Origin India
Certification ISO 9001 : 2015
Condition New
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Automatic Grade
Automatic
Driven Type
Electric
Brand Name
ESICO
Product Code
1524

The Roller Mixers mix samples through the simultaneously rolling action of the tubes and the carried vessels (bottles, test tubes etc.). As the tubes rolling, the vessels are rolling too, causing continuous mixing of the liquid inside the vessels. The most advanced features are the convenient sample handling and the accommodation of various types of vessels in the mixer without adding any adapters or accessories compared to other types of mixers.

There are two types of action on the tube rolling mixers:

  1. With a slightly tilted angle on the axes of the tubes, a gently rocking action happens when tube rolling. It helps the mixing efficiency of some viscous samples in gentle mode. And it is ideal for mixing blood samples, viscous substances and liquid-solid suspensions where minimum aeration is required or for aiding defrosting of samples.
  2. A rolling action without rocking effect. Samples are mixed with the continuous rolling action.


There are two types of sub-models for the above models based on the control modes: An analog and a digital control. Both of the sub-models have the speed and timer controls with maximum speed of 33rpm. All units can be used in incubators up to 60°C and humidity up to 80%, or in cold rooms down to 4°C. Most sizes of tubes, Bijoux, Universals and bottles can be accommodated.

The LTR series are having nine rollers which suitable for large vessels and tubes. And the MTR series are smaller version with four rollers. The loading capacity is 5 KG for the above mixers.


Advantages

  • Rocking and rolling action for complete mixing
  • Four roller design with small footprint
  • Designed for continuous quiet operation
  • Ambient temperature range +4°C to +60°C
  • Rocking and rolling action for complete Mixing
  • Four roller design with small footprint
  • Designed for continuous quiet operation
  • Ambient temperature range +4°C to +60°C

Products Range:
Semi Auto Analyser, Double Beam UV/VIS Spectrophotometer, Single Beam UV/VIS Spectrophotometer, Flame Photometer, Haemoglobin Meter, Photo Colorimeter, pH Meter, Conductivity Meter, TDS Meter, DO Meter, Salinity Meter, Turbidity Meter, Nephelometer, Colony Counter, Karl Fischer Moisture Titrator, Fluorometer, Dissolution Test Apparatus, Disintegration Test Apparatus, Friability Apparatus, Melting Point Apparatus, Bulk Density Appartus, Telethermometer, Temperature Indicator, Water & Soil Analysis Kit, Portable pH Meter, Portable Conductivity Meter, Portable TDS Meter, Portable DO Meter, Student Microscope, Binocular Microscope, Medical Microscope, Co-Axial Microscope.

Yes! I am interested


Techincal Specification

Model 524 1524
Roller Size 230 mm length 230 mm length
Controls Analog Digital
No. of Rollers 4 4
Speed 33rpm (Approx.) 33rpm (Approx.)
Maximum load, kg 5 5
Timer No Continuos or Timer Operation
Power Supply 230V ± 10% AC, 50Hz 230V ± 10% AC, 50Hz
